Qwen Hidden VM Mixed Domains

2026-06-23

Created standalone mixed-domain hidden VM experiment.

Initial design:

• Use a fixed typed VM with ten operations: add, subtract, multiply, calendar add/subtract modulo 7, set, max, min, xor, and greater-than.
• Generate exact hidden traces for six task families: arithmetic chains, calendar shifts, unit-style transforms, list aggregation, boolean thresholding, and lookup/adjust rules.
• Train Qwen 3 4B with QLoRA plus a compiler head to emit VM slots from prompts.
• Compare trace-supervised hidden VM training against answer-only executor training.
• Evaluate direct answer logits, compiler execution accuracy, exact program match, state-prefix accuracy, per-domain accuracy, fresh paraphrases, paired standard/paraphrase prompts, and longer/harder programs.

Next steps:

• Implement the standalone trainer and analyzer.
• Run a tiny smoke test.
• If the smoke passes, run a pilot to tune training steps and loss weights.
• Run main and answer-only control runs.
• Generate charts, markdown, HTML, and artifact manifest.

Smoke and first pilot notes:

• smoke_hidden_vm_mixed passed end-to-end after adding a guard that max_steps must cover train, eval, and hard program lengths.
• pilot_hidden_vm_trace_s160 did not improve fresh mixed-domain executor accuracy. The useful signal was diagnostic rather than positive: initialization was learned, operation slots partially learned, and argument slots were weak.
• A lookup-domain bug was found: the selected table value could appear only before the SET operation while the compiler's argument reader is intentionally local after each operation token. The renderer now repeats the selected value as the explicit SET argument.
• Dataset construction now balances domains by cycling through the configured domain list before shuffling, so pilots cannot accidentally under-sample a hard domain.

Repaired pilot plan:

python experiments/qwen_hidden_vm_mixed_domains/src/qwen_hidden_vm_mixed_domains_experiment.py \
  --run_name pilot_hidden_vm_trace_balanced_l4_s256 --variant trace \
  --train_examples 256 --val_examples 72 --eval_examples 72 --eval_pairs 48 --domain_eval_examples 16 \
  --train_steps 260 --train_batch_size 2 --eval_batch_size 4 \
  --max_steps 6 --train_max_len 4 --eval_length 4 --hard_length 6 --max_length 512 \
  --lr 5e-5 --executor_loss_weight 0.2 --state_loss_weight 0.05 \
  --log_every 25 --seed 94 --eval_seed 94001

Repaired pilot result:

• pilot_hidden_vm_trace_balanced_l4_s256 completed in 184.9 seconds.
• Fresh paired hidden-VM executor accuracy improved from 24.0% at initialization to 55.2%; direct numeric-token accuracy finished at 14.6%.
• Fresh paired program-exact accuracy reached 49.0%; state-prefix fraction reached 70.6%.
• Per-domain fresh paired hidden-VM accuracy: arithmetic 62.5%, calendar 31.2%, unit 56.2%, list 100.0%, boolean 50.0%, lookup 31.2%.
• Hard length-6 transfer remained weak: 18.1% on standard prompts and 29.2% on paraphrases.

Main trace run plan:

python experiments/qwen_hidden_vm_mixed_domains/src/qwen_hidden_vm_mixed_domains_experiment.py \
  --run_name main_hidden_vm_trace_s512 --variant trace \
  --train_examples 512 --val_examples 144 --eval_examples 192 --eval_pairs 128 --domain_eval_examples 32 \
  --train_steps 520 --train_batch_size 2 --eval_batch_size 8 \
  --max_steps 6 --train_max_len 4 --eval_length 4 --hard_length 6 --max_length 512 \
  --lr 5e-5 --executor_loss_weight 0.2 --state_loss_weight 0.05 \
  --log_every 65 --seed 95 --eval_seed 95001

Main trace result:

• main_hidden_vm_trace_s512 completed in 333.2 seconds.
• Fresh paired hidden-VM executor accuracy reached 77.7%; direct numeric-token accuracy finished at 14.8%.
• Fresh paired program-exact accuracy reached 63.7%; state-prefix fraction reached 81.0%.
• Fresh standard and paraphrase hidden-VM executor accuracy reached 72.9% and 75.5%.
• Hard length-6 transfer improved to 50.0% on standard prompts and 35.9% on paraphrases.
• Per-domain mixed hidden-VM accuracy: arithmetic 65.6%, calendar 56.2%, unit 71.9%, list 71.9%, boolean 90.6%, lookup 87.5%.

Matched answer-only control plan:

python experiments/qwen_hidden_vm_mixed_domains/src/qwen_hidden_vm_mixed_domains_experiment.py \
  --run_name control_hidden_vm_answer_only_s512 --variant answer_only \
  --train_examples 512 --val_examples 144 --eval_examples 192 --eval_pairs 128 --domain_eval_examples 32 \
  --train_steps 520 --train_batch_size 2 --eval_batch_size 8 \
  --max_steps 6 --train_max_len 4 --eval_length 4 --hard_length 6 --max_length 512 \
  --lr 5e-5 --executor_loss_weight 1.0 --state_loss_weight 0.0 --direct_answer_loss_weight 0.0 \
  --log_every 65 --seed 96 --eval_seed 95001

Matched answer-only control result:

• control_hidden_vm_answer_only_s512 completed in 358.5 seconds.
• Fresh paired hidden-VM executor accuracy reached 60.2%; direct numeric-token accuracy finished at 12.1%.
• Fresh paired program-exact accuracy reached 34.4%; state-prefix fraction reached 58.1%.
• Hard length-6 transfer reached 36.5% on standard prompts and 37.0% on paraphrases.
• The control is materially better than chance, so final-answer gradients can discover a useful executable policy. Trace supervision still adds +17.6 percentage points on fresh paired execution, +29.3 percentage points on program exactness, and +22.9 percentage points on state-prefix recovery.

Analysis artifacts:

• Generated analysis/summary.md.
• Generated reports/qwen_hidden_vm_mixed_domains_paper.md.
• Generated reports/qwen_hidden_vm_mixed_domains_paper.html.

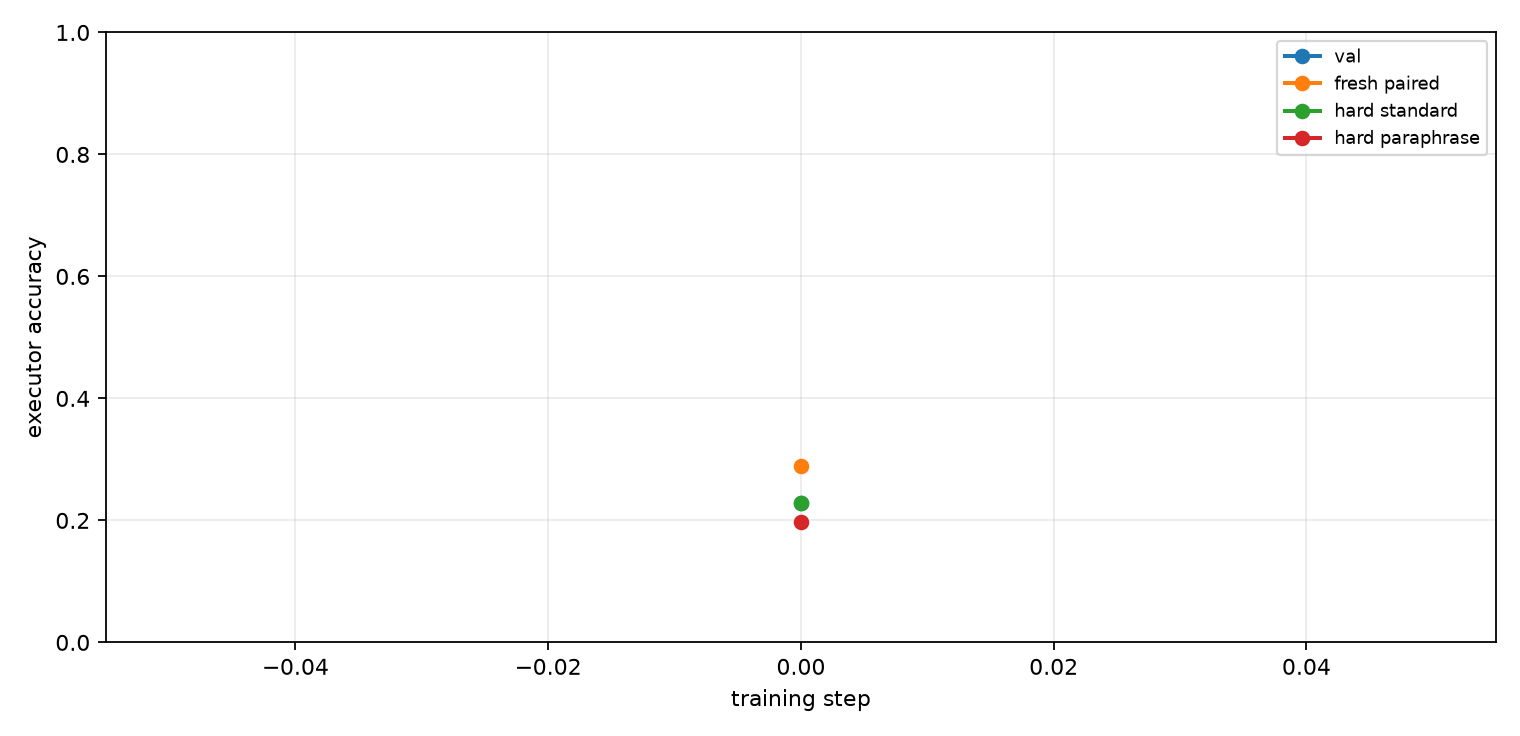

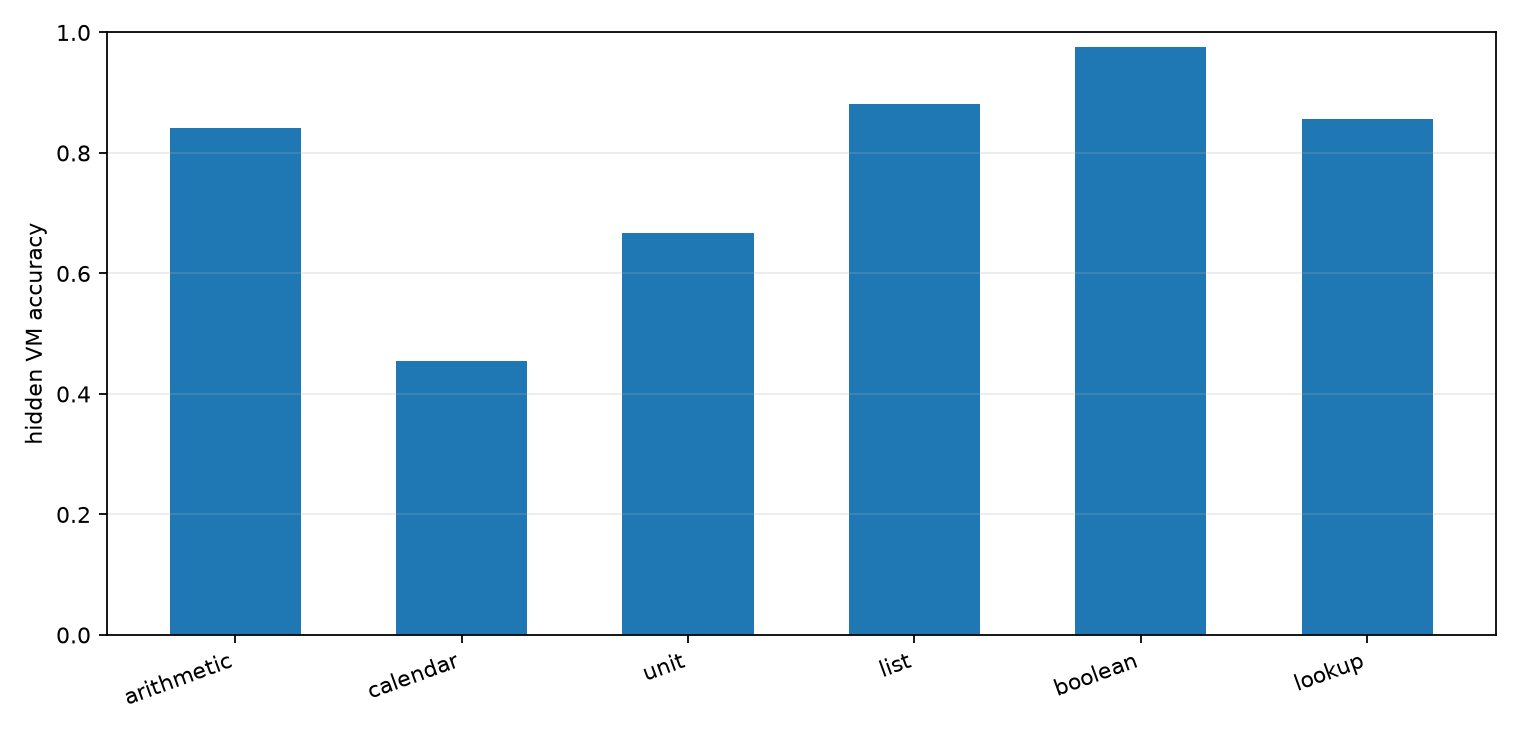

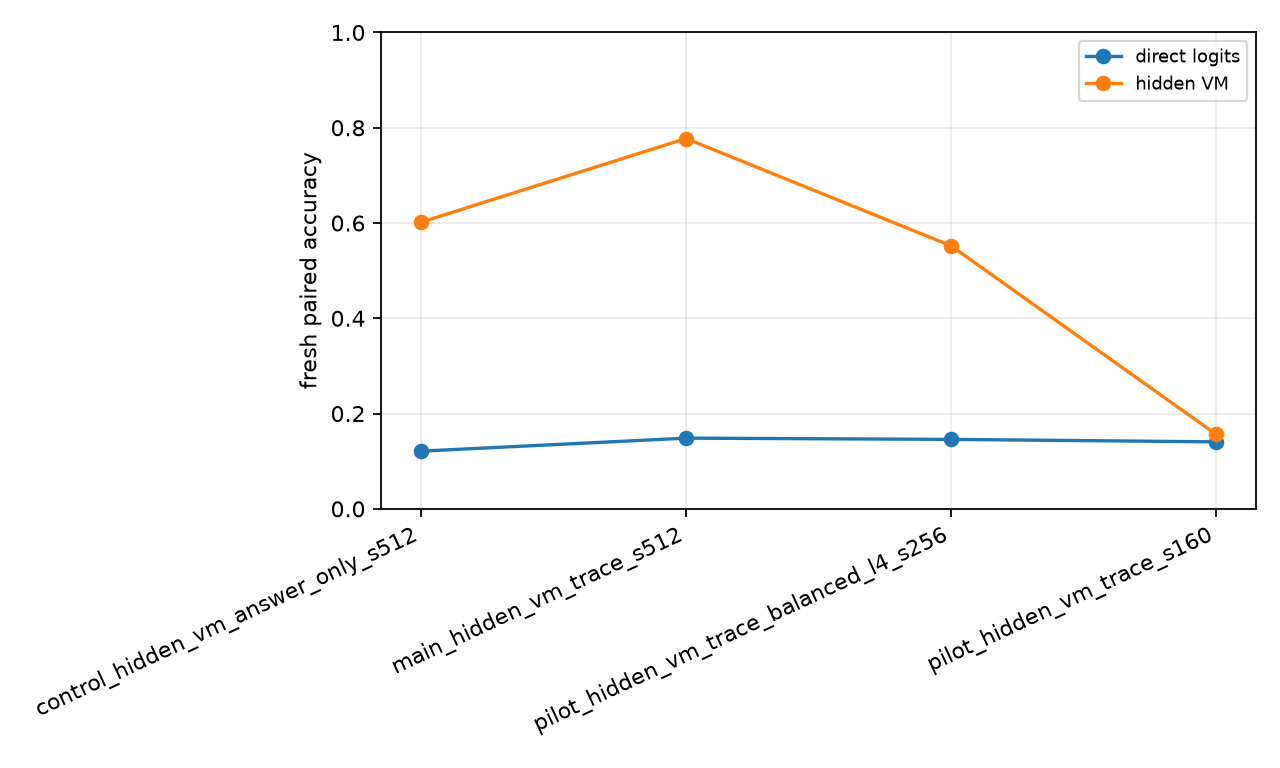

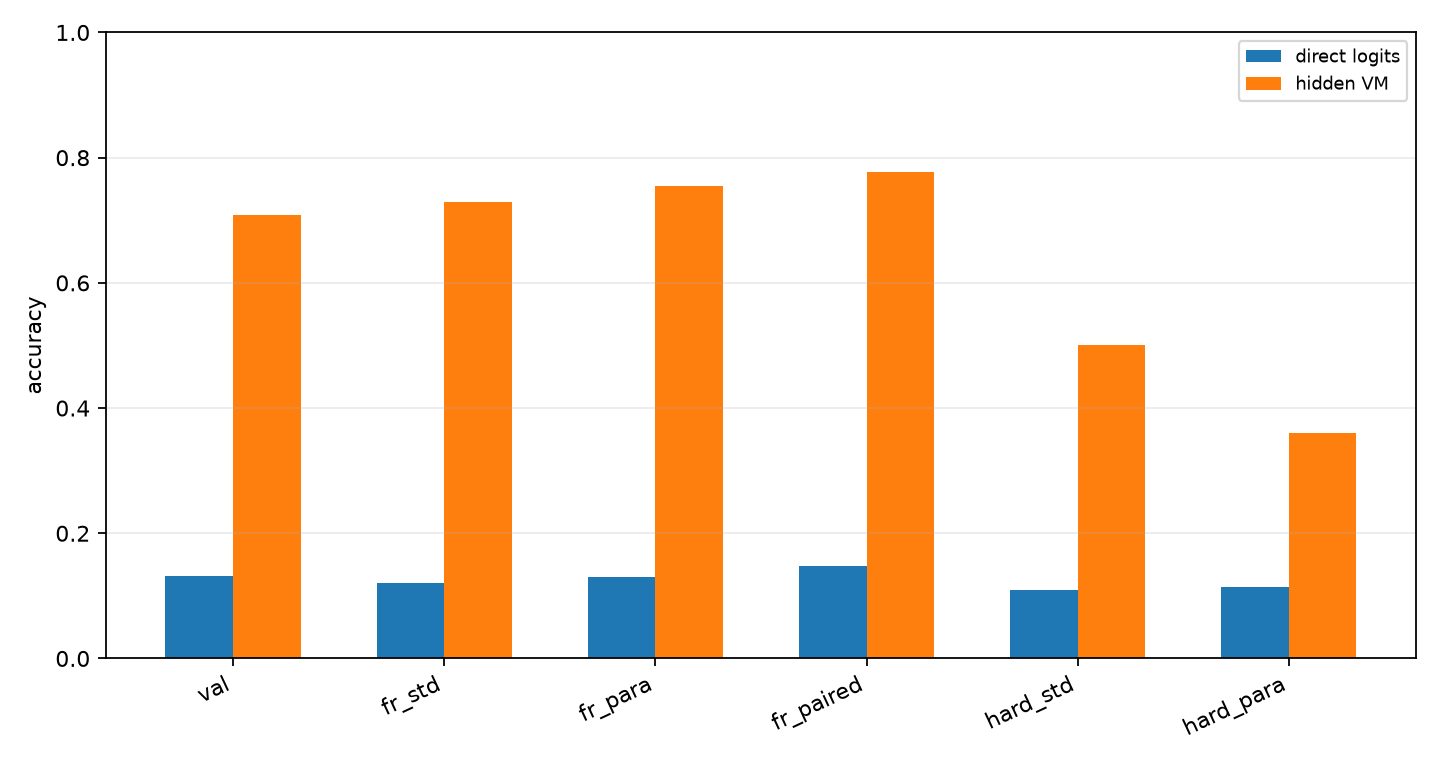

• Generated figures: split_accuracy.png, domain_accuracy.png, training_curve.png, and run_summary.png.
• Generated checkpoint_manifest.csv pointing to large checkpoint artifacts under large_artifacts/qwen_hidden_vm_mixed_domains/checkpoints/.

Current interpretation:

This is a positive result for the Qwen-attached hidden-executor direction. The trace-supervised hidden VM improves fresh paired accuracy from 14.8% direct next-token answering to 77.7% executable hidden-program answering. The answer-only executable control reaches 60.2%, which is also important: the runtime architecture itself is useful, but dense trace supervision makes the compiled programs much more reliable and inspectable.

The remaining weakness is length-generalization. Training on length 1-4 transfers to length 6, but not cleanly enough: 50.0% on standard hard prompts and 35.9% on paraphrased hard prompts.
